FEBRUARY 28 : an astronaut in spacewalk in 3D video

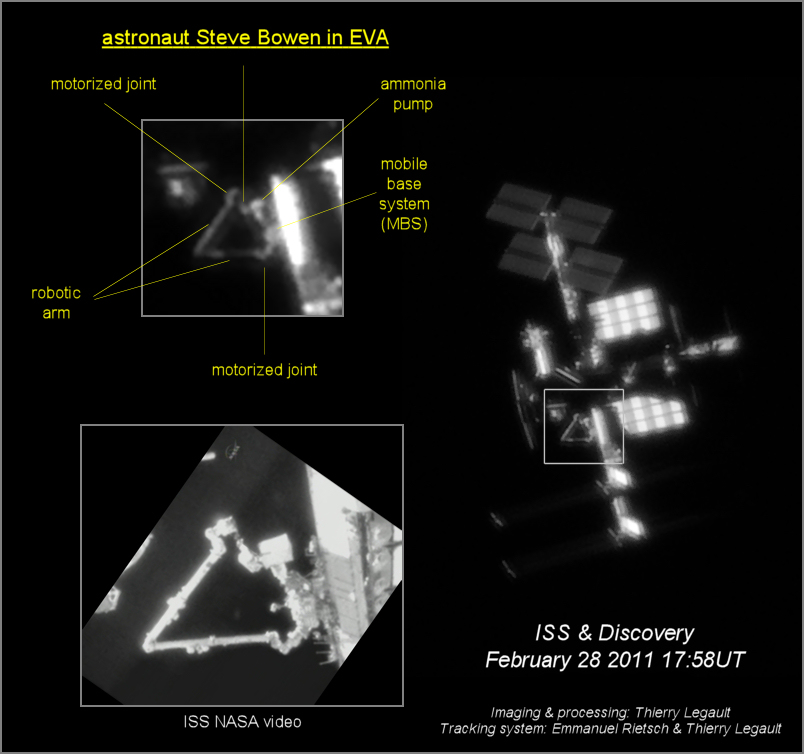

This is the first image ever taken from the ground, of an astronaut in extravehicular activity (EVA1). Steve Bowen, attached to the end of the ISS robotic arm (MSS), was working on a defective ammonia pump. The pump was hooked to the ISS mobile base system (MBS). All major elements of the robotic arm are visible, including the structures of the motorized joints and some elements along the arms (smaller than the astronaut).

Passage of the International Space Station and Discovery, taken on February 28th 2011 at 17:58UT from the area of Weimar, Germany. The video is accelerated 2.5 times (acquisition at 10 fps, video at 25 fps). The altitude of the ISS is 360 km (200 miles), for a size of a hundred metres. The speed of ISS is 17,000 miles per hour and its angular speed at zenith is 1.2 per second.

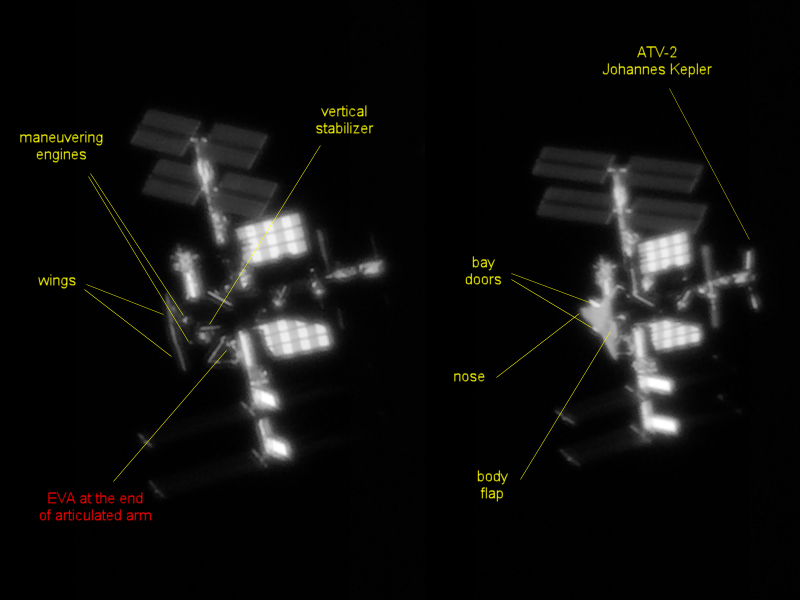

As shown in the caption below, Discovery is docked to the ISS on the left of the image and is seen essentially from the rear (stabilizer and nozzle), the wings being vertical. At the beginning of the sequence, we see the inside of the payload bay, while at the end we see the heat shield, the body flap and the payload bay doors (opened) as two bright lines.

Downloadable DivX file (for private show only).

To look at the sequence below in 3D (click on the frame to start):
- squint (cross the eyes) to see 4 images of the ISS
- merge the two central images
- amongst the three images finally visible, concentrate only on the central one

This method may require a bit of training if you are not used to squint but it gives a very realistic view (and it does not need special 3D glasses!).

Downloadable DivX file (for private show only).

Below an anaglyph, to look with red/blue glasses:

Downloadable DivX file (for private show only).

The shooting equipment is described in detail in this page. The 1600 frames of the sequence has been registered and combined by groups of 15 (processing with Prism and VirtualDub). This video needs Flash Player 10. Click on the small square with an arrow inside (video menu) for fullscreen view.


Passage of the International Space Station and Discovery 30 minutes before docking, taken on February 26th 2011 at 18:40UT from the area of Weimar, Germany. It's sunset on the ISS at the end of the video sequence.

Downloadable DivX file (for private show only).

MARCH 7 & 8 : Discovery before return to Earth

On March 7, the robotic arm is used for a last inspection of the protection tiles before landing.
