This is the first image ever taken showing the tiny lunar crescent at the precise moment of the New Moon, in full daylight at 12h29min UT on April 14 2010. It is the youngest possible crescent, the age of the Moon at this instant being exactly zero. Celestial north is up and the arrow shows the direction of the Sun. The lunar arc is visible on about 70° of its circumference. The irregularities and discontinuities are caused by the relief at the edge of the lunar disk (mountains, craters).

From the shooting site (Montfaucon, France, 44°41'52"N, 1°34'30"E, altitude 300m), the angular separation between the Moon and the Sun was only 4.55° (nine solar diameters). At this very small separation, the crescent is extremely thin (a few arc seconds at maximum) and, above all, it is drowned in the solar glare, the blue sky being about 400 times brighter than the crescent itself in infrared (and probably more than 1000 times in visible light). This explains that it has never been observed visually or even photographed until now. In order to reduce the glare, the images have been taken in close infrared and a pierced screen, placed just in front of the telescope, prevents the sunlight from entering directly in the telescope.

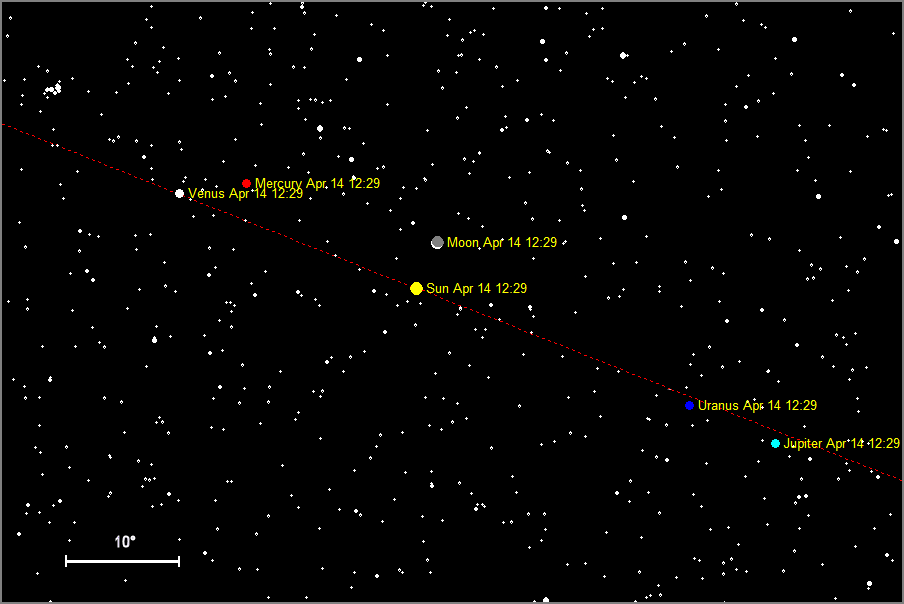

The ephemerides have been calculated with the NASA JPL HORIZONS System.

Instrumentation: Takahashi FSQ-106ED with focal reducer (D=106mm, F=400mm) on Losmandy Titan German equatorial mount, Lumenera Skynyx L2-2 monochrome video camera (1616x1212 pixels of 4.4 microns), low-pass infrared filter 850nm in luminance. Processing: combination of 500 calibrated (flat-field) images, gradient removal, contrast/brightness, IR-RGB color. The Moon has been pointed with the help of the GOTO system of the mount and tracked at the precise lunar speed calculated for the instant of shooting, after polar alignment the night before and synchronization on the Sun.

Caution ! The very thin crescent of the New Moon cannot be observed visually whatever the instrument (naked eye, binoculars, telescope...). Moreover, pointing a celestial object that close to the Sun is dangerous for the observer and his equipment if it is not performed under the control of an experienced astronomer and with the proper equipment.

Notes on the New Moon and the visibility of the thinnest crescent
The Moon, in its orbital movement around the Earth, passes about once a month in the apparent vicinity of the Sun. If the lunar orbit were exactly situated in the same plane as the Earth's one, at each New Moon the three bodies would be aligned and, each month, we would see a total eclipse of the Sun. But the orbit of the Moon is tilted about 5° towards the Earth's orbit, so that at most New Moons, the Moon is seen passing slightly "over" of "under" the Sun and there is no eclipse ( situation "A"). A solar eclipse happens only if the New Moon occurs in the vicility of its nodes (situation "B"), but in this case the thin crescent cannot be photographed. Rigorously, the New Moon is defined as the instant when the ecliptic geocentric longitudes of the Moon and the Sun are equal, that is to say the instant when the imaginary line joining the Moon and the Sun is perpendicular to the ecliptic (the plane of the Earth's orbit). One considers that it is also the instant when their angular separation is minimum.

Note on the visibility of the thin crescent and the beginning of Ramadan (Islam)
Most muslims consider the visibility of the first crescent after the New Moon to determine the beginning of Ramadan, but this vision must be performed visually without optical instrument and not photographically.
